LoRaWAN Indoor Air Quality Sensor

  • Price: Negotiable
  • MOQ: 50 SQM
  • NRC: 0.88 from ISO354
  • Fire protection performance: Class A
  • Eco-Friendly: E1


LoRaWAN HKT-IAQ-1000 Indoor Air Quality Sensor

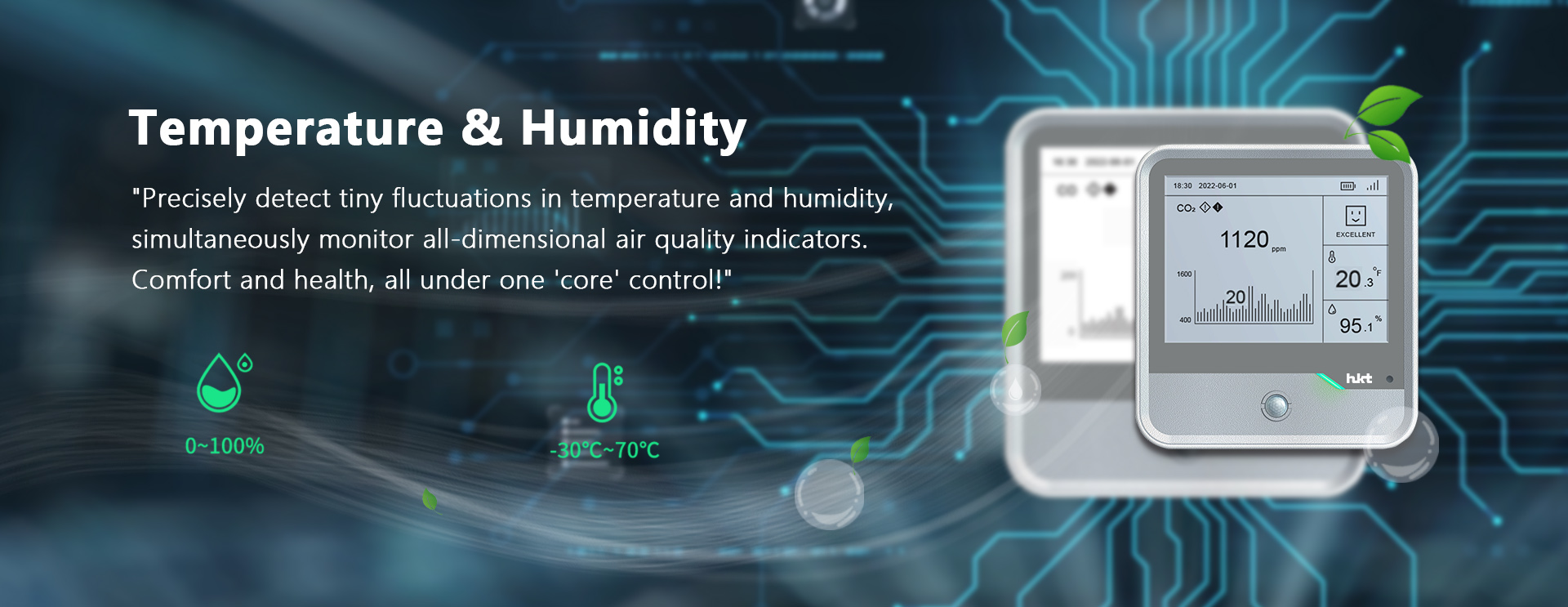

The HKT-IAQ-1000 indoor environment monitoring sensor is independently developed and designed by Hunan HKT Technology Co., Ltd. It is a compact indoor ambience monitoring sensor for measurement of temperature,,humidity, light, CO2 concentration, HCHO/O3 level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. HKT-IAQ-1000 series is widely used for offices, stores, classrooms, hospitals, etc.


Features of LoRaWAN Indoor Air Quality Sensor

  • Easy installation:support 3M glue or screw fixing.
  • The longest communication distance: Up to 5Km in open environment;
  • Super long standby: low power consumption, easy to replace, use 4 AAA alkaline batteries,can be used continuously for more than 1 year;
  • Status display: the screen display is delicate, the visual effect is good under the sun,could see every corner, ultra-low power consumption, no refresh and no power consumption;
  • Buzzer indication: through the sound of the buzzer to distinguish the state change of the environmental quality scene;
  • Various monitoring contents: High-precision sensors are used to integrate formaldehyde, ozone,PM2.5&PM10, temperature and humidity, light, CO2, atmospheric pressure, TVOC, infrared detection and other functions to fully meet the indoor environment monitoring applications;
  • Good compatibility:Compatible with standard LoRaWAN® gateways and third-party network server platforms;
  • Integrated management: Fast connection with HKT LoRaWAN® gateway and cloud platform without additional configuration;
  • Three-dimensional appearance: the shell adopts a three-dimensional structure design, with clean-cut, which brings visual impact experience to users.

HKT provides customized services:

  • ODM
  • Pre-sales & After-sales Services
  • Technology Support

Product Specification

Parameters Description
Model IAQ-1000
Communication Standard LoRaWAN Protocol
Frequency EU868,CN470,IN865,US915,AU915,AS923
Tx Power 18.5±1dBm(max)
Sensitivity -135±1dBm @SF=12
Activation Method OTAA/ABP Class A/Class C
Display 4.2-inch Black & White E-Ink Screen
Button 1 × Power Button + 1 × Reset Button(built in)
LED & Buzzer 3×LED lights(green/orange/red) + 1 × Buzzer
Configuration Server or serial port
Operating Temperature -20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 10% - 90% (non-condensing)
Power supply 4 AAA large-capacity batteries/Type-C power supply(5V/1A)
Dimension 115 × 109 × 23 mm
Installation 3M glue fixed or screw fixed or screw fixed wall mounting

LoRaWAN air quality sensor can display the data in real-time. So you can analyze and make a strategic decision to ensure that the best possible environment is provided at all the times for people.


  • Home automation: To monitor and control the ambient conditions in a home, such as temperature, humidity, and air quality.
  • Commercial buildings: To optimize the ambient conditions in commercial buildings, such as offices, schools, and hospitals.
  • Industrial settings: To monitor ambient conditions in industrial settings, such as factories, warehouses, and mines.
  • Agricultural environments: To monitor and control the ambient conditions in agricultural settings, such as greenhouses and animal enclosures.
  • Transportation: To monitor the ambient conditions in transportation vehicles, such as airplanes, trains, and buses.
  • Outdoor environments: To monitor ambient conditions in outdoor environments, such as parks, beaches, and public squares.
