LoRaWAN Infrared People Counter
The HKT PC-100 can be used indoors and outdoors. You only need to power the battery of the pedestrian counter to transmit data over longer distances than wireless Lans or 3G/4G networks.The product have 2 sensors, a transmitter and a receiver placed at an entrance (up to 8 m). The LoRaWAN people counter works with horizontal infrared technology. As long as it is connected to the LoRaWAN network, it provides you with precise hourly data. And use your Iot platform to analyze the traffic on an hourly/daily/weekly/monthly/ yearly basis.
It can be widely used in scenic spot entrance, supermarket entrance, store entrance and other scenes with high pedestrian flow to realize remote personnel counting management.
Features of HKT PC-100
HKT provides customized services:
Product Specifications
| Parameters | Description |
| Induction distance | ≤8m |
| reed switch | 1 magnetic reed switch (build-in device) |
| LED light | 4, 1 each in red, green, blue and orange |
| communication protocols | Standard LoRaWAN Protocol |
| Transmitting power | 18.5±1dBm(max) |
| Ultra-high reception sensitivity | -135±1dBm @SF=12 |
| Access/working mode | OTAA/ABP Class A |
| Configuration method | Server or serial port |
| Software Features | Anti-tamper alarm, low battery notification |
| Power supply | Transmitter: 1 4000 mAh ER18505 lithium battery |
| Receiver: 2 x 4000 mAh ER18505 lithium battery | |
| Battery life | >1year（30 data uploads/day） |
| Operating temperature | -20°C ~60°C |
| Working humidity | ≤90%（No condensation） |

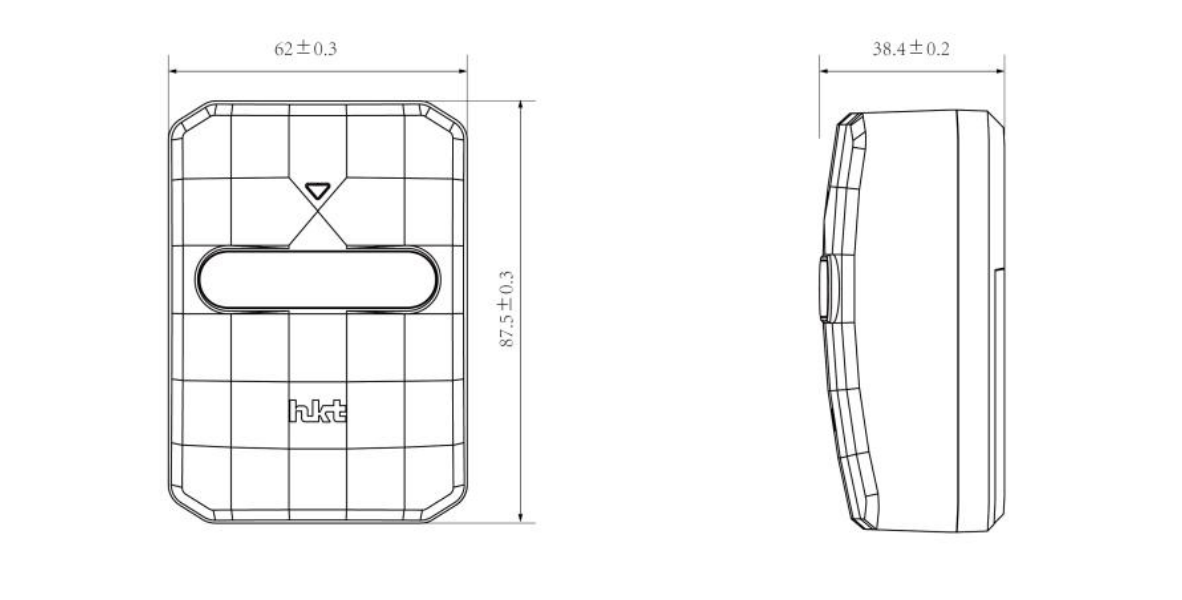

| Size | Transmitter：87.5 × 62 × 35 mm |
| Receiver：87.5 × 62 × 35 mm | |
| Installation | 3M adhesive fixing or screw fixing |
| Installation suggestions | Counter height difference from the ground 0.8m~1.3m，1.2m is recommended. |
| The infrared transmitting hole at the transmitting end is aligned with the middle position at the receiving end. |
With the It complies with NEMA and the LoRaWANTM Specification Class C standard for easy and fast access to LoRaWANNTM network. With current and voltage measurement circuit inside, it collects the load status in real time. It has strong anti-interference ability and costs low power consumption, capable in long distance transmission. It has the advantages of small size, easy operation and maintenance, free wiring, reliable performance. It is an energy-saving design for smart lighting.
